Description

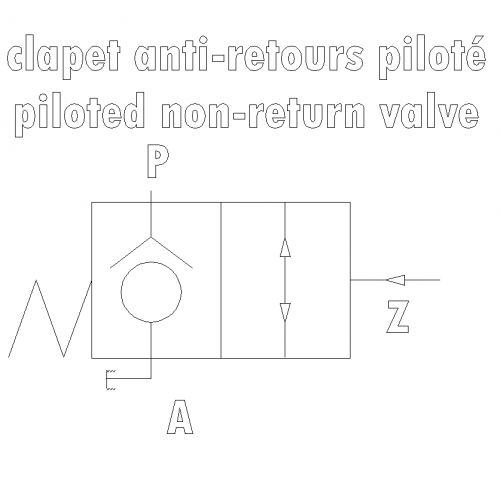

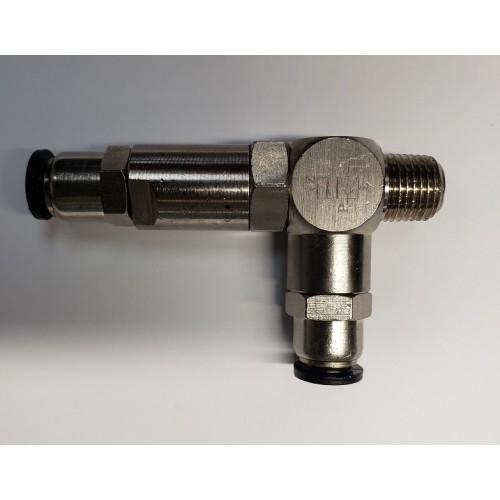

Pilot operated check valve, PCV8

– Intended to protect your installations: locking the cylinder in a vertical or horizontal position, stopping the cylinder halfway, occasional maintenance of a driving load when the compressed air supply is cut off.
– Flexibility: all ports are rotatable 360 ° to adapt to all mounting configurations.
– Monobloc product: integrated fittings for piloting and supply inlet.
– Reliability: control and unitary dating of all fittings to guarantee their good quality and traceability.

Technical specifications:

-maximum operating pressure
10 bar
1 MPa
145 psi

-operating temperature
-5 to 60 ° C
23 to 140 ° F
268 to 333 ° K

– hooking washer: steel
-piston: treated brass
-seals: NBR
-base: treated brass
– body: treated brass
