Description
Package List:

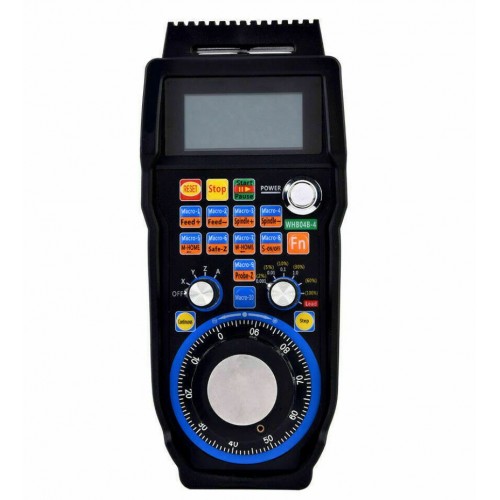

1 x WHB04B wireless electronic hand wheel
1 x Hand wheel rocker
1 x USB wireless receiver
1 x Manual
1 x WHB04B drive CD
1 x Hand wheel rocker
1 x USB wireless receiver
1 x Manual
1 x WHB04B drive CD
Features:
– Adopt frequency hopping transmission, strong anti-interference ability
– Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
– With 32 frequency hopping channels, each channel interval 1MHZ.
– Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code .
– Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other
– LCD display
– Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.
– Show the spindle speed, the value of the feed rate.
– Dot matrix LCD with backlight

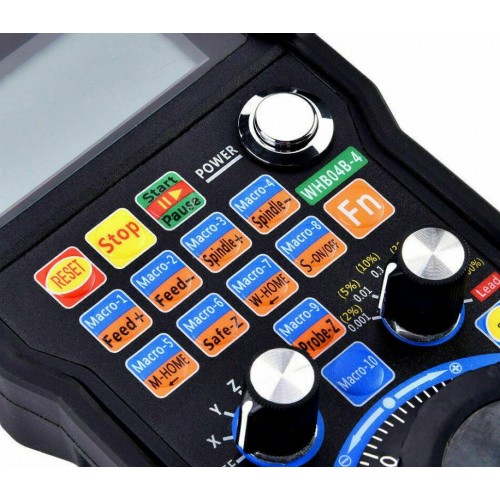

– Axis selection, power band switch control
– Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control
– The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
– Adopt frequency hopping transmission, strong anti-interference ability
– Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
– With 32 frequency hopping channels, each channel interval 1MHZ.
– Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code .
– Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other
– LCD display
– Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.
– Show the spindle speed, the value of the feed rate.
– Dot matrix LCD with backlight
– Axis selection, power band switch control
– Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control
– The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
Application:
For Windows: All Mach3 CNC
Parameter:
– Communication channel: ISM, 433MHZ
– Power: 2* AA alkaline batteries
– Wireless transmission range: 40 meters without obstacle
– Encoder: 100PPR
– Button: 13
– Transmit power: 10DB
– Acceptance sensitivity: -98DB
– Maximum axis: 4 axis
– Display screen: dot matrix LCD backlight display screen
– Material: PC and ABS material, good resistance to heat and toughness, and a silicone sleeve protection
– Pas de retour après achat
