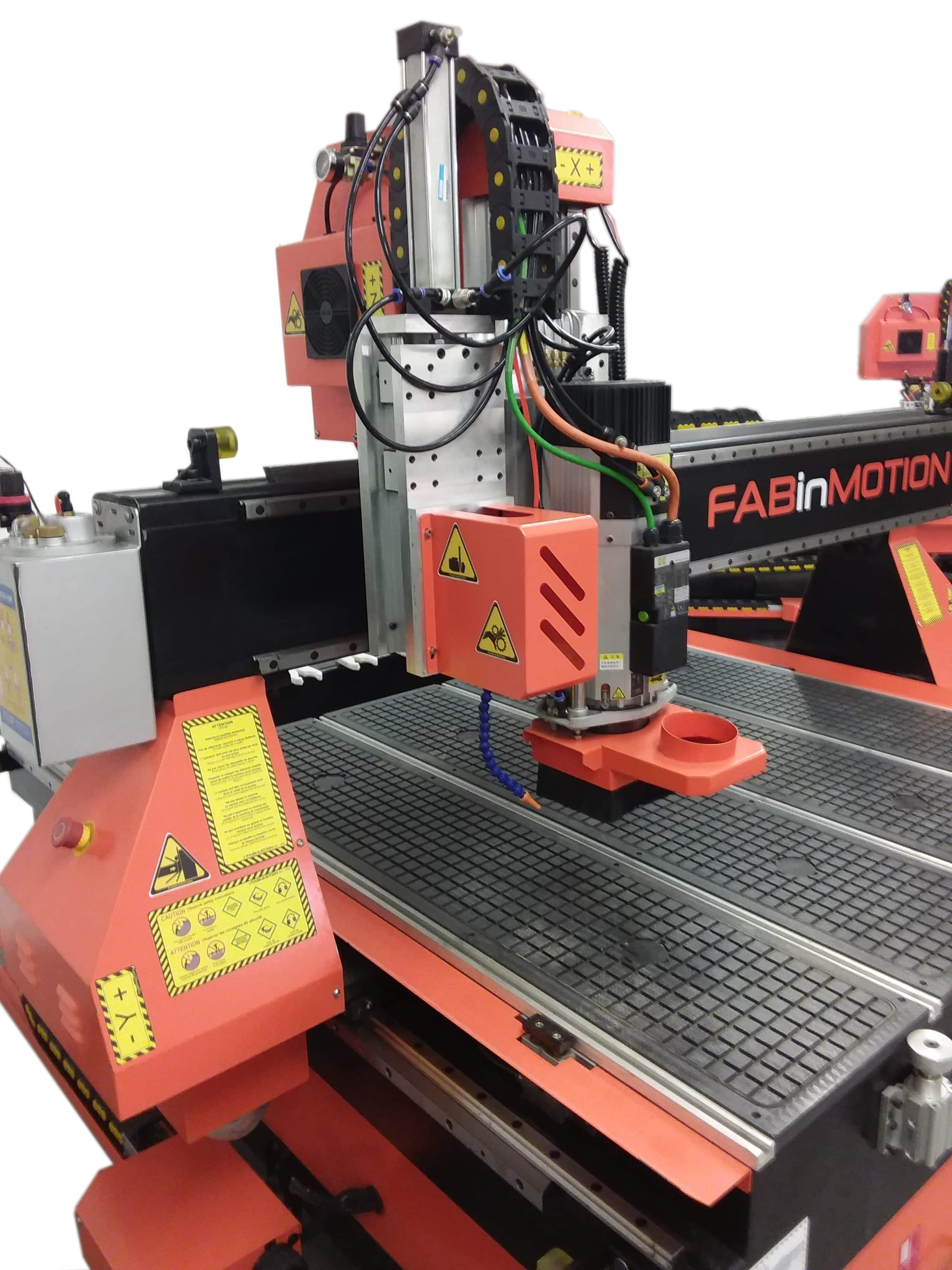

C-Fab CNC 441
Our machines meet the highest standards.
Internal components CSA or equivalent
Machine approved to CSA’s SPE-1000 standard.
| Work envelope : | 1370mm x 1370mm x 300mm ( 52” x 52” x 12” ) |
| Position accuracy | +- 0.1016mm / 300mm ( 0.004/ft ) |
| Position repeatability | +- 0.1016mm ( 0.004” ) |
| Vacuum Table | 4 independent zones |
| Table T-slots | Yes |
| Frame | Welded Hss |
| X – Y Motion | Helical rack & pinon With Japan Shimpo reducer |
| Z – Motion | Ball screw, 25mm |
| Servo Motors | Delta Electronics, AC permanent-magnet, 750 W |
| Servo Drivers | Delta Electronics |
| Guidance | Abba linear rails & bearings, 25mm |
| Max rapids | 1500 ipm |
| Spindle power | 6 Kw ( 8 Hp) |
| Spindle collet size | Er 32 |
| Spindle cooling | Air |
| Spindle max. speed | 24,000 rpm |
| Supply Voltage | 208Vac / 60 Hz / 3 Ph / 30 Amp 240Vac / 60 Hz / 2 Ph / 40 Amp |
| Operating environment | Temp: 0-45°C, Rel. Humidity: 30%-75% |
| Overall Dimensions | 2185mm x 21850mm x 1880mm ( 86” x 86” x 74” ) |
| Approx. Weight | 750 Kg ( 1665 lbs. ) |
| Electrical safety | Approved to CSA’s SPE-1000 standard by Intertek, inc. |
| Warning: Cannot be operated without supervision | A 4-hour training is necessary before operating the machine. |
